CCTV (Closed-Circuit Television)
Intelligent CCTV Solutions for Public Transport: Maximum Safety, Full Compliance, Highest Efficiency
For public transportation operators, ensuring the safe and reliable monitoring of passenger and driver areas is paramount to modern fleet management strategies. ACTIA’s intelligently networked CCTV video security solutions offer operators a scalable system architecture designed to meet the high demands of public transportation.
ACTIA’s professional video surveillance solutions optimize security processes and improve operational efficiency. These solutions include real-time CCTV, precise analysis of recorded data, and advanced features such as object detection, facial recognition, diagnostics, and passenger counting. These features help transit companies detect incidents more quickly, ensure regulatory compliance, and reduce operating costs.
Through continuous technological advancement, ACTIA meets current market and regulatory requirements and enables a future-proof implementation across your entire fleet. Choose CCTV solutions that combine safety, compliance, and digital connectivity to ensure efficient, modern, and safe public transportation.
Our CCTV Products

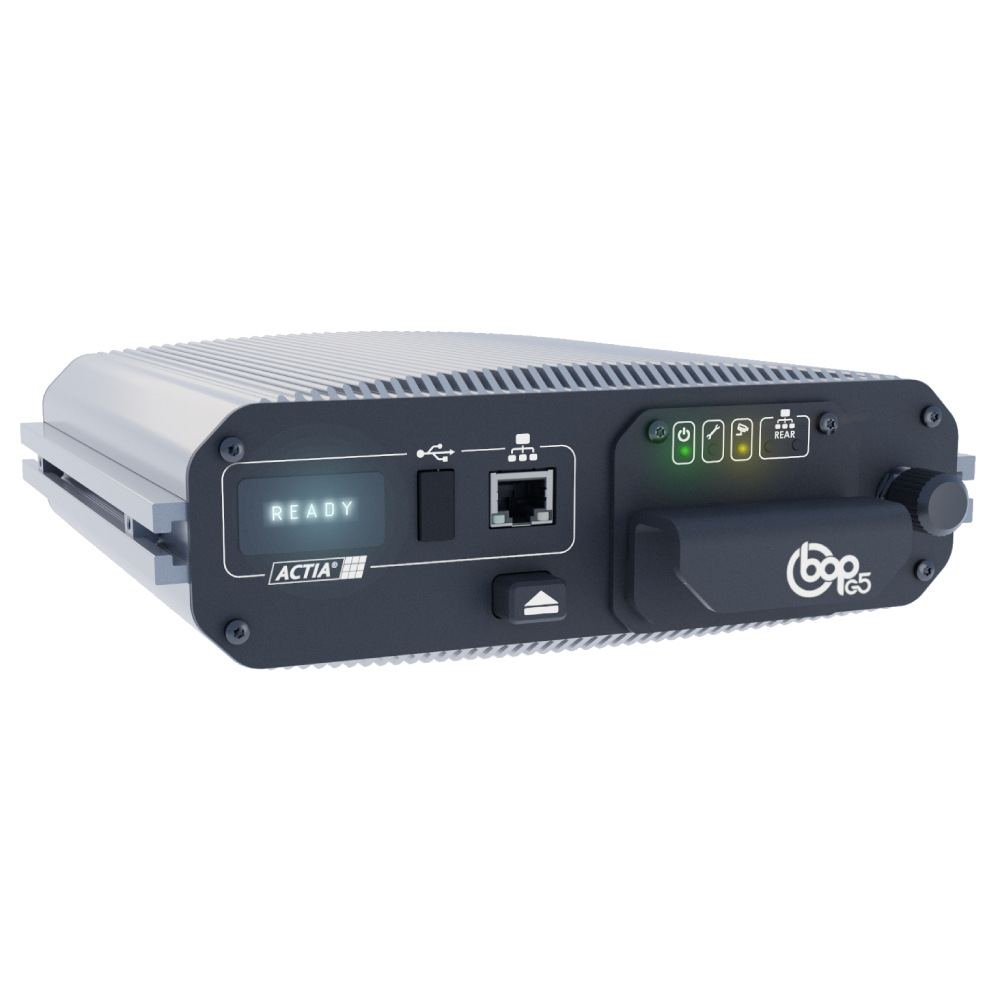

BOP G5 (Coming Soon)
For smart, safe, connected & sustainable mobility.
At the core of our video security system is the BOP.
The new BOP G5 (MNVR) enhances road safety for a variety of vehicles, including buses, taxis, police vehicles, and many other emergency vehicles. Our video security solutions were developed to meet the new safety requirements for passengers and drivers in public transportation.
- BOP “Best Of Protection”: A high-performance, fail-safe device with innovative technology.
- Safety: Improved road safety thanks to 32 IP cameras.
- Access Control: Control and monitoring through the management of users, roles, and access rights.
- Nutzerfreundlichkeit: Intuitive Benutzeroberfläche und verständliche Aufbereitung von Inhalten, die die System-Konfiguration erleichtern.
Commercial vehicles
Railway
Highlights
- Mobile Network Video Recorder (MNVR)
- Up tp 32 IP-Cameras
- Multiple connection interfaces: LAN M12, RJ45, USB
- Service display for operating status
- Electronic key for locking/unlocking the removable SlideDisk
- ONVIF interface
- MPEG‑4, H.264, H.265 compression (H.265 on request)
- 25 fps for real‑time recording and playback
- Min. 4 TB SSD
- Up to 90 Mbit/s video processing capability
- ITxPT compliant
- E‑Mark, CE, and RoHS certified
Technical Data
Discover technical details in our product flyer.
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.

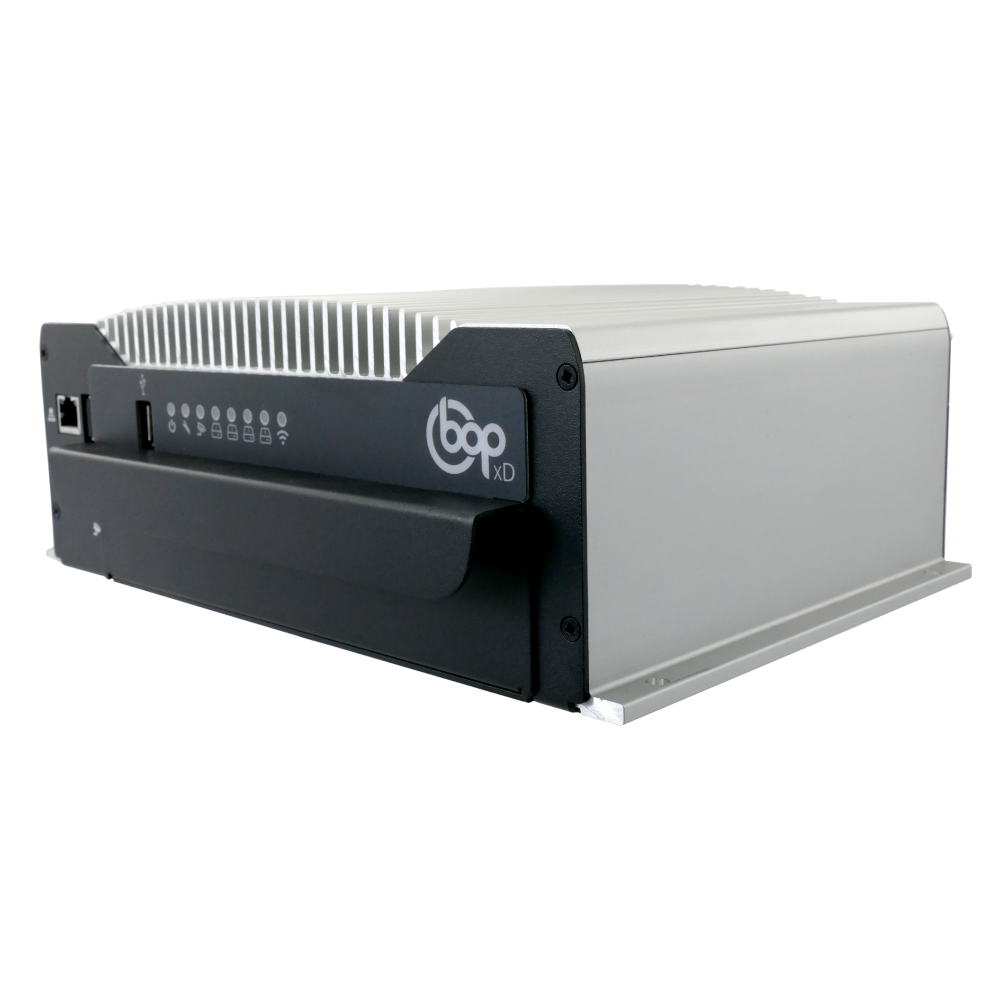

BOP XD
The BOP series offers a wide range of solutions for use in local public transit, as well as in special-purpose vehicles and trains.
The BOP XD allows for connection of up to 32 cameras. Its hard drive boasts a capacity of up to 4 TB, allowing for extended recording times. The BOP system is complemented by powerful and user-friendly analysis software, as well as a wide range of camera models and accessories.
Commercial vehicles
Railway
Highlights
- Simultaneous use of analogue and IP cameras (hybrid system)
- Numerous options for connection to other vehicle electronics (e.g. CAN bus, IBIS)
- Web interface for easy configuration
- Signal conversion from analogue cameras for IP monitors and streaming
- Optional W-LAN on board for setup, evaluation and live image via smartphone or tablet PC
- Two independent monitor outputs with the option for mosaic display and mix of analogue and IP cameras
Technical Data
Discover technical details in our product flyer.
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.

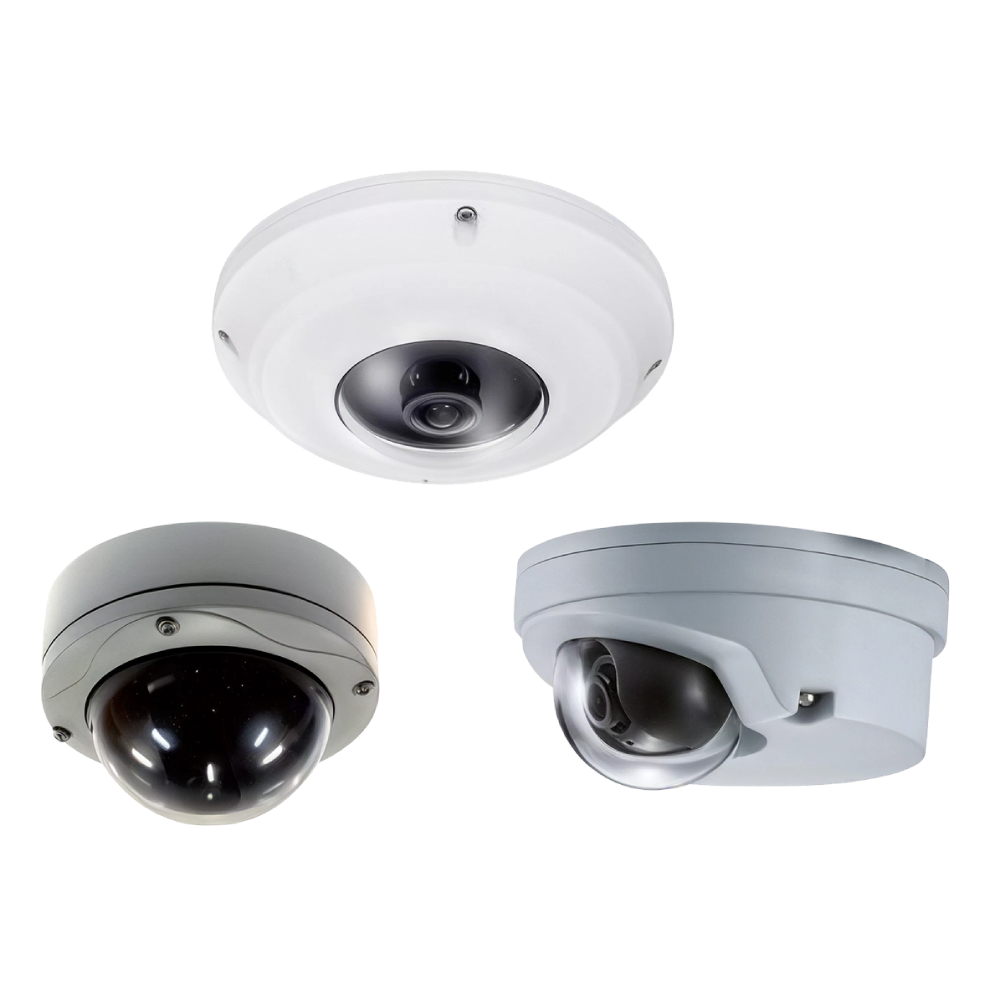

IP & analog cameras
IP and analog cameras were specifically designed for high-resolution video surveillance on buses, trains, and subways.
These compact, rugged, and discreet cameras are equipped with IP65 / IK10 protection, making them capable of withstanding harsh conditions such as vibrations, impacts, and temperature fluctuations.
Our cameras are equipped with CMOS sensor and ISP technology for adaptation, responding quickly to changes in light and scenes, ensuring that the highest image quality is always guaranteed.
Commercial vehicles
Railway
Highlights
- High resolution video surveillance in or on buses, trains and subway
- Full Metal Design – made for harsh transport environment
- Compact footprint
- Outstanding performance
Technical Data
Discover technical details in our product flyer.
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.

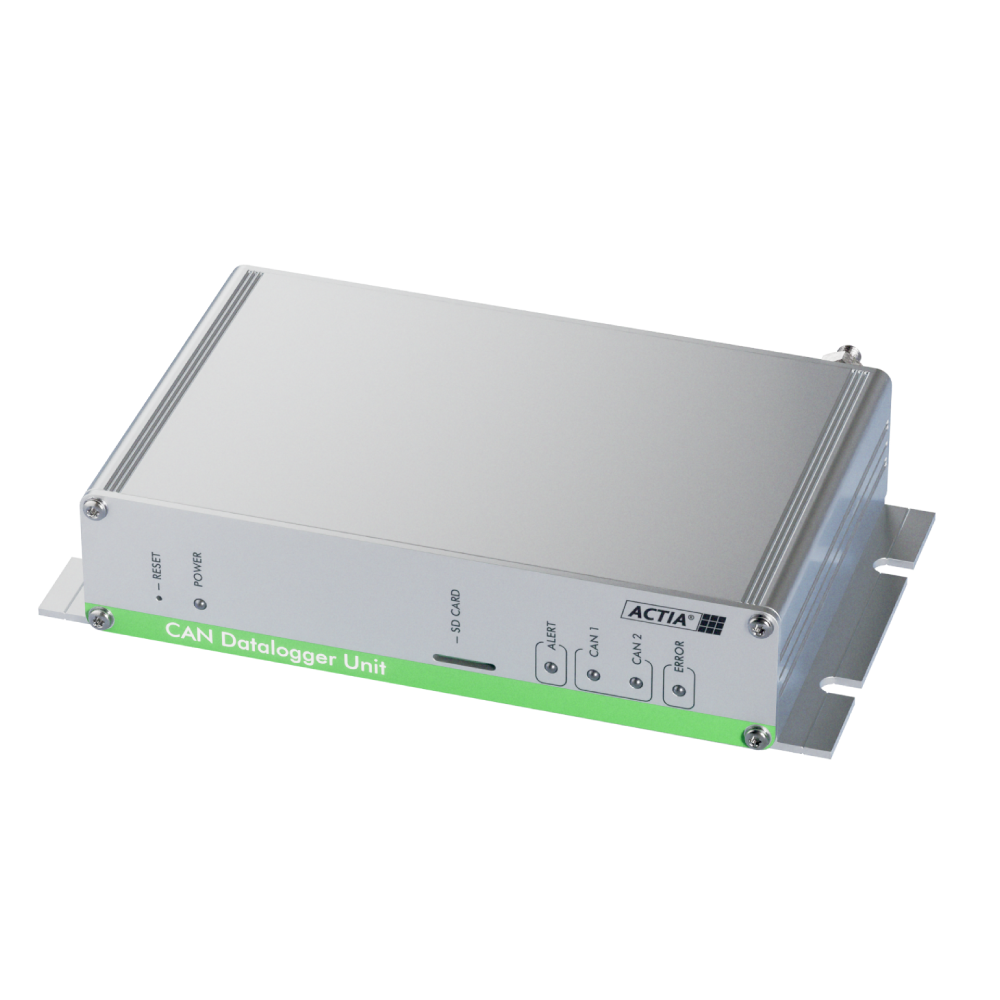

CAN Datalogger Unit (DLU)
For fast and secure data collection
The CAN data logger unit for rail transportation is designed to acquire and process CAN data with high precision and transmit it to a data center. This facilitates the maintenance and predictive maintenance of CAN networks and/or environmental conditions. The device is suitable for use in rail, bus, and tractor applications.
Commercial vehicles
Railway
Highlights
- Data logger functionality: listen multiple time stamped CAN-and Environment data streams
- CAN Galvanic isolation
- 2 x CAN listen only via 2 x D-Sub 9-Pol – Male (DE-9)
- 1x Ethernet 10/100 Mbit/s with M12 connector
- LED signal for CAN1 or CAN2 activities
- SD-Card For local data storage
- Internal sensor for humidity, pressure and temperature
Technical Data
Discover technical details in our product flyer.
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.

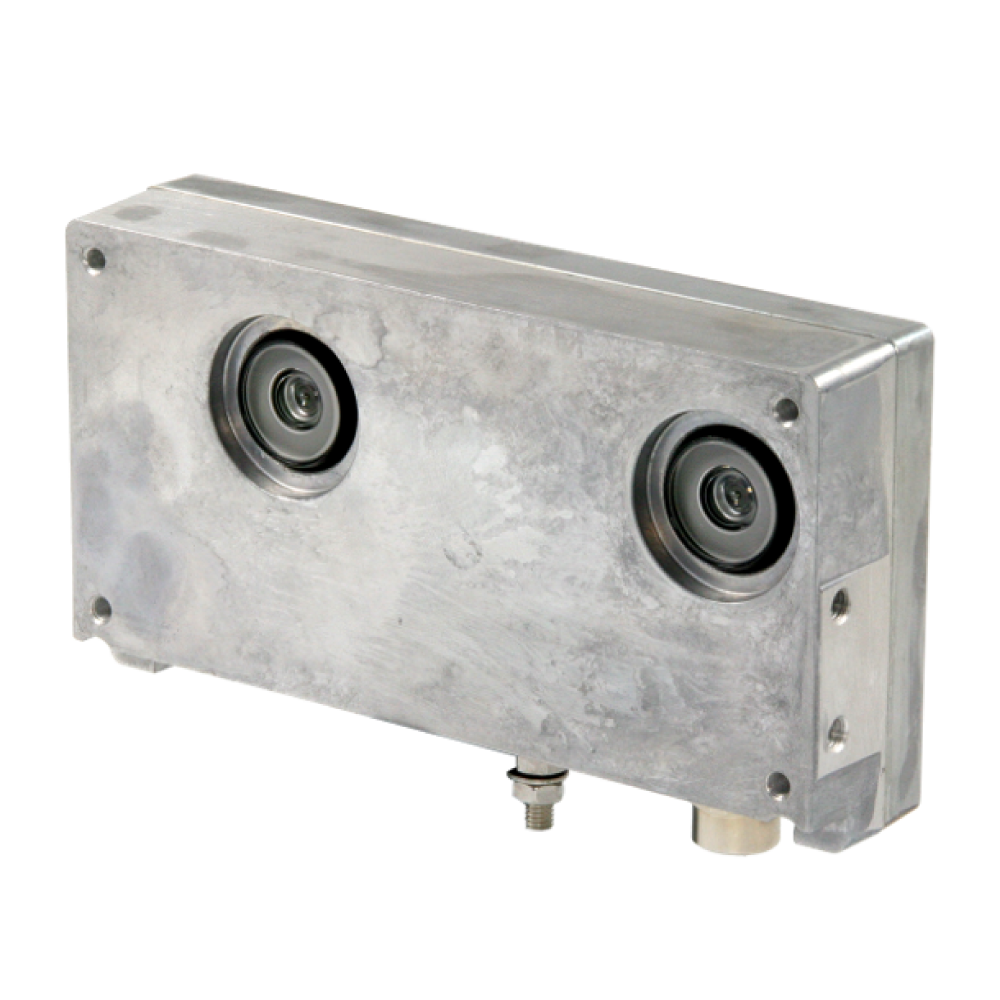

ICount – Passenger counting
ACTIA’s automatic counting system enables bidirectional passenger counting in vehicles with an accuracy of over 98%.
iCount utilizes a stereoscopic camera system, enabling it to operate in three dimensions. This feature enables the system to precisely differentiate between people and luggage as they enter and exit. The iCount system streamlines the installation process by requiring only a single sensor, a configuration that remains effective even for wide double doors.
Commercial vehicles
Railway
Highlights
- The accuracy of the iCount system exceeds the VDV 458 specifications and meets all public transit requirements.
- The system with stereo cameras is very easy to install and configure.
- Even under difficult operating conditions, it performs with exceptional reliability. Malfunctions caused by adhesive buildup or spray are detected and reported via optical self-diagnosis.
- iCount is compliant with data protection regulations because the BOP Reviewer analysis software retrieves only the count results, excluding any images. The data in CSV format can be easily exported to analysis systems.
- iCount can be easily and flexibly adapted to all application conditions.
Technical Data
Discover technical details in our product flyer.
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.

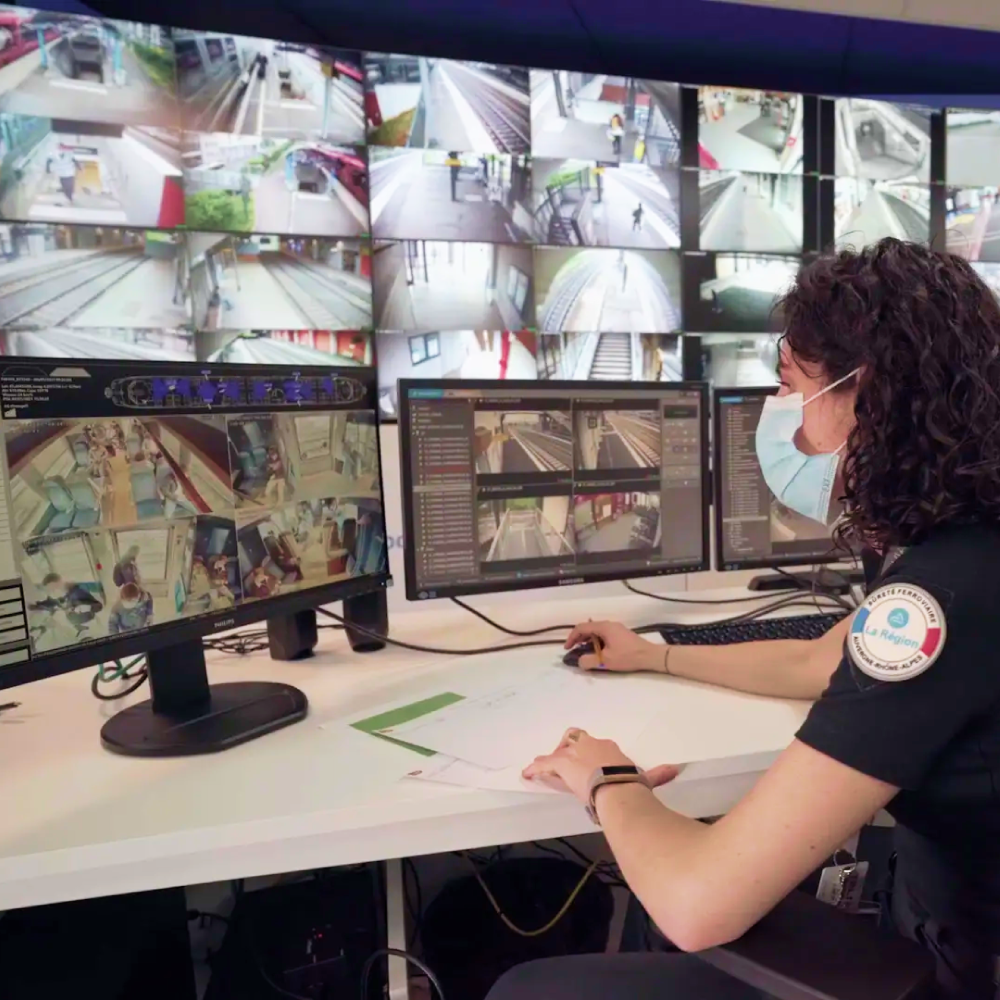

Reviewer Software
Efficient Analysis of Video and Audio Data
The BOP Reviewer software is a licensed Windows application designed for the professional playback, analysis, and further processing of data recorded by the ACTIA BOP system. Its intuitive user interface enables operators to swiftly identify events, evaluate synchronized video, audio, and vehicle data, and view multiple camera feeds simultaneously. This facilitates efficient incident analysis, improves the traceability of events, and supports informed decision-making in daily operations.
Commercial vehicles
Railway
Highlights
- Simple export function for analyses and reporting
- Intuitive and user-friendly interface
- Quick Access to Recordings and Alarm Events
- Synchronized Analysis of Video, Audio, and Vehicle Data
- Simultaneous Display of Multiple Camera Angles
- Encrypted storage for maximum data security
Technical Data
- PC standalone application
- Analysis and Playback Software
- Compatibility: ACTIA BOP Systems
- Display IBIS information with search and filter functions
- Display of I/O information (event data)
- Split-screen display with up to 16 camera feeds
- Optimized for control centers, depots, and service centers in public transportation
- Zoom function for detailed analyses
- Import & Export:
- Data Import Features
- Exporting Logs and Event Data
- Assistance with documentation, report preparation, and preservation of evidence
- Data Security:
- Password-Protected User Access
- Secure and Protected Processing of Recorded Data
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.

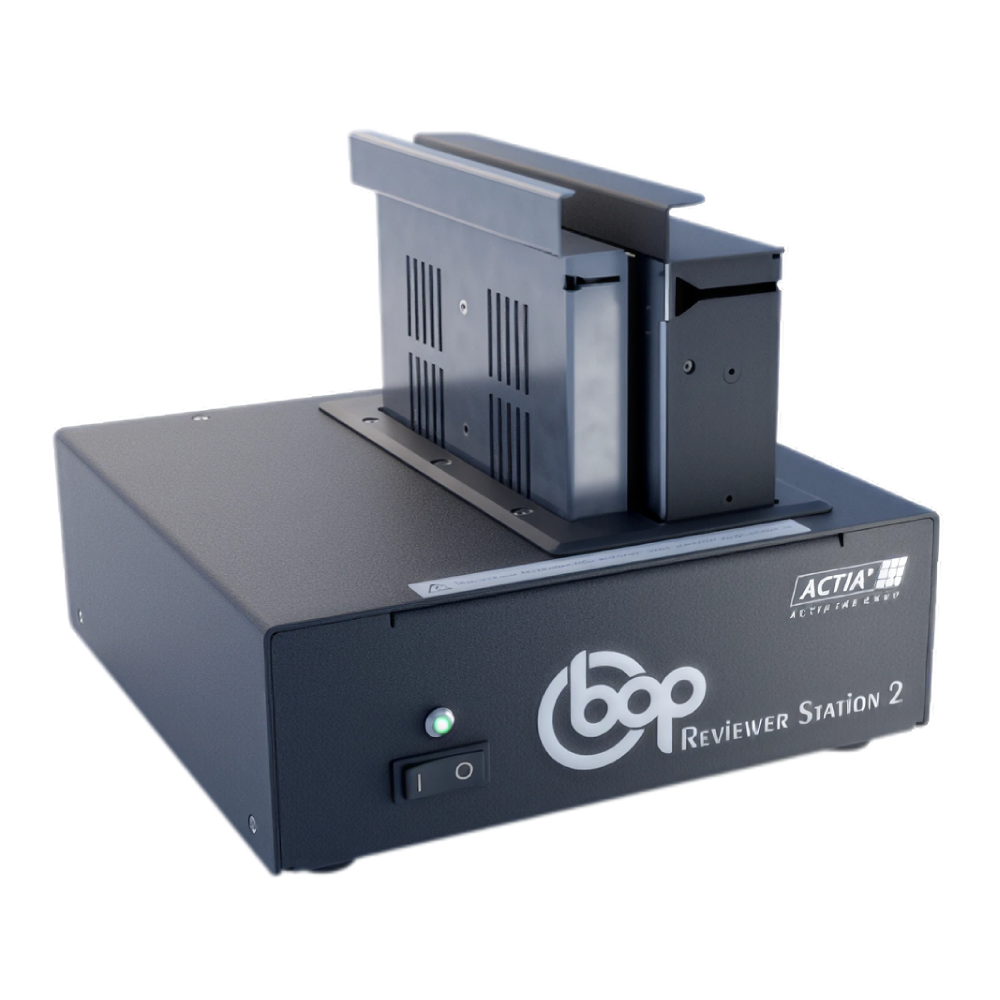

Reviewer Station (Hardware)
The BOP Reviewer Station allows you to read the data recorded by the BOP Recorder. The data is decrypted by the Reviewer software.
Commercial vehicles
Railway
Highlights
- Hard Drive Recovery Station
- Full Metal Design – made for harsh transport environment
- Compact footprint
- Outstanding performance
Technical Data
- Dimensions (L × W × H): 243 mm × 183 mm × 77 mm
- Housing material: Galvanized steel sheet (DX51D+Z275‑MAC)
- Operating temperature: −5 °C to +35 °C
- Storage temperature: 0 °C to +50 °C
- Supply voltage: 12 V ±10%
- Current consumption: Max. 2.5 A at +12 V
- Quiescent current: 333 mA at +12 V
- Humidity: 40%–50%, non‑condensing
- Protection class: IP30
- Internal interfaces: SATA via 24/36‑pin connector
- External interfaces: RJ45 Ethernet socket, transmission speed 1 Gbit/s4‑pin
M12 connector for desktop power supply - Optical indication: Power LED
- torage system:SATA port BOP‑XD SlideDisk,
SATA port BOP‑HD SlideDisk - Power supply: 12V 4A 50W / 12V 5A 60W
Purchasing options
This product is available exclusively for B2B customers. Please contact our sales team via the contact form for consultation and purchase. We are happy to support you with customized solutions.
Education & Training
We offer customized training courses for all of our products. Our hands-on workshops are designed to equip participants with the expertise necessary to utilize our solutions effectively.
Your benefits at a glance:
- Hands-on learning: Apply what you’ve learned directly to your projects.
- Flexible formats: Online, on-site, or as one-on-one coaching.
- Firsthand expert knowledge: Our trainers have extensive experience and share best practices.
- Sustained Success: The primary objective is to swiftly enhance the productivity and efficiency of your team.
Discover how our training courses can develop and strengthen your team.
